Omron HV-F230 TENS Therapy Device – 12 Programs, 20 Intensity Levels, Drug-Free Pain Relief

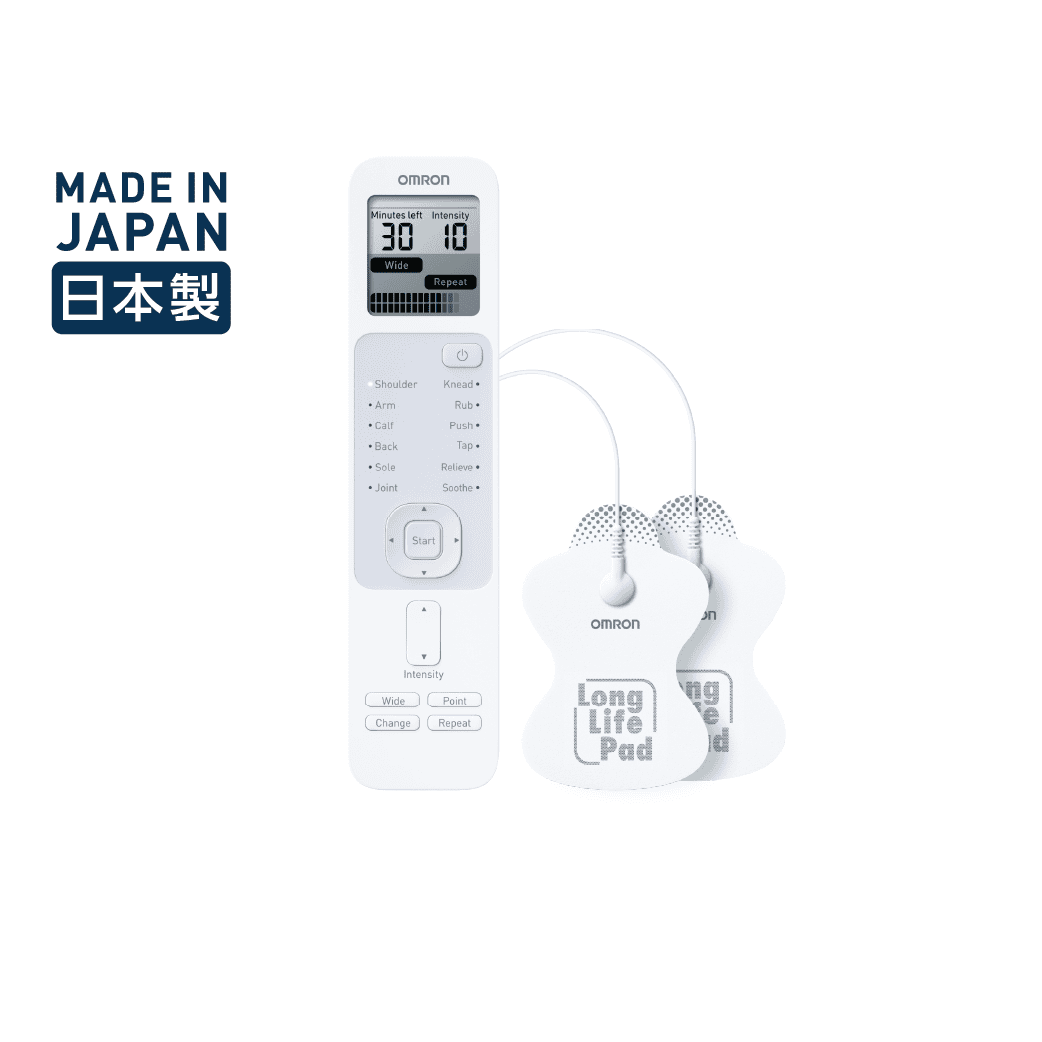

Omron HV-F230 TENS Therapy Device

The Omron HV-F230 is OMRON's newest TENS (Transcutaneous Electrical Nerve Stimulation) device, delivering targeted, drug-free relief from pain and muscular tension. With 12 pre-set programs, 20 intensity levels and high-frequency stimulation up to 1,200Hz, you can tailor treatment to where it hurts. Made in Japan, it replaces the Omron HV-F127 and HV-F128.

Key Features

• 6 Body Area Modes: Shoulder, arm, calf, back, sole and joint (knee, elbow).
• 12 Pre-Set Programs: Includes massage-style and pain relief modes, plus Wide, Point, Change and Repeat options.
• 20 Intensity Levels: Customisable for personalised comfort.
• Drug-Free Pain Relief: Targeted relief using two electrode pads.
• Helps relieve pain and muscular tension by blocking pain signals and triggering the release of endorphins.

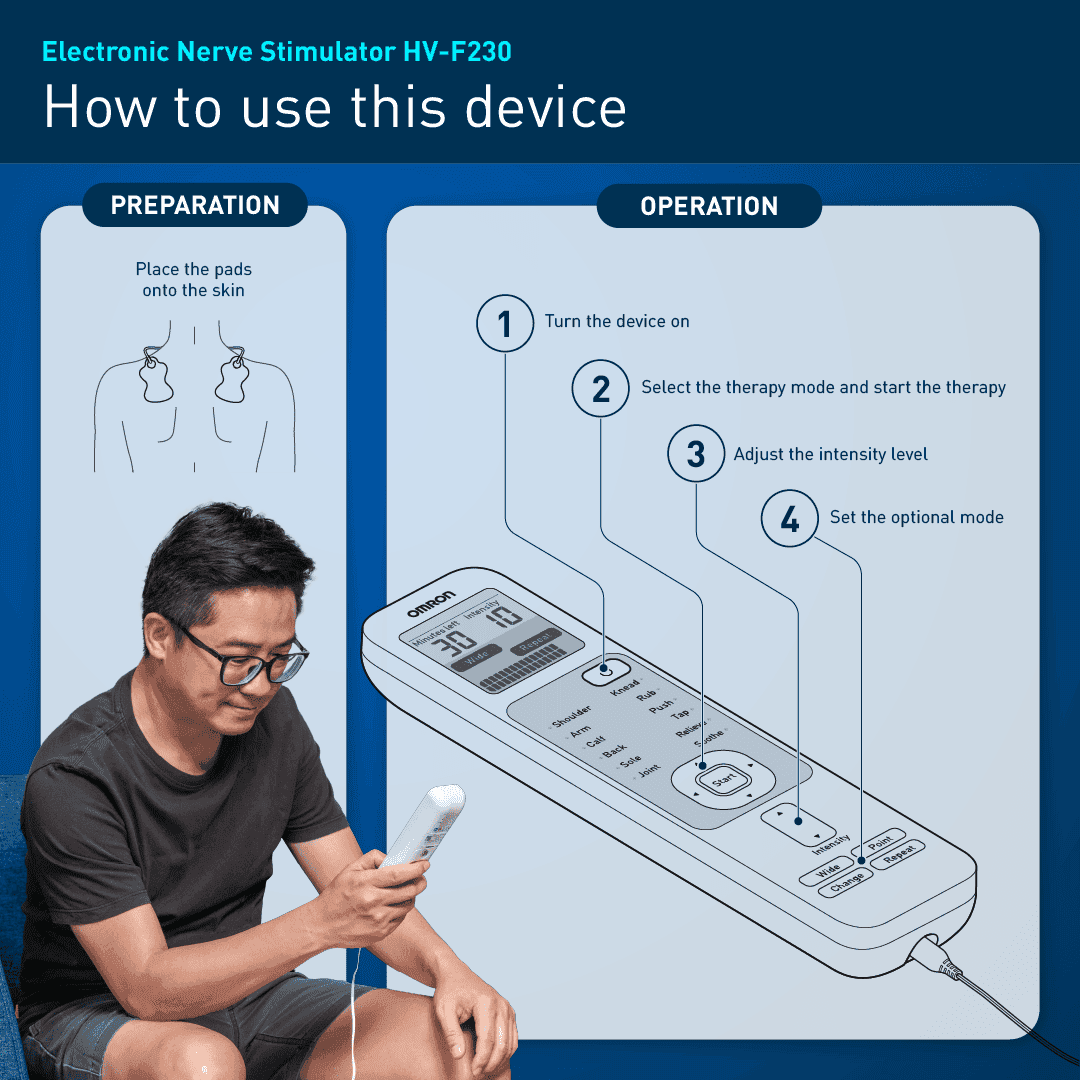

• 30-minute auto-off and simple operation with an easy-to-read LCD screen.

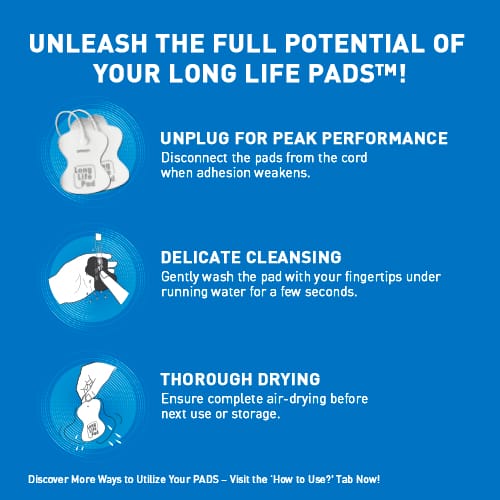

• Long Life Pads: Up to 150 uses with proper care.
• Complete kit included and a 4 year warranty (2 years standard + 2 years when registered).

How TENS Works

TENS sends a small electrical current through the skin via electrodes to stimulate sensory nerve endings. It relieves pain in two ways: by stimulating the release of endorphins, the body's own pain-relieving hormones, and by the "pain gate" effect, which blocks pain signals before they reach the brain.

Specifications

• Model: HV-F230
• Frequency: 0.7–1,200Hz
• Session duration: 30 minutes
• Pad type: Long Life Pad (HV-LLPAD)
• Power: DC 3V, 2 x AAA batteries
• Packaged size: 136mm (W) x 249mm (H) x 50mm (D)
• Packaged weight: approx. 450g
• Barcode: 4975479498824 | Pharmacode: 2736438
• Replaces: Omron HV-F127 and HV-F128

Frequently Asked Questions

• Q: Which body areas can I use the HV-F230 on?
  A: It has dedicated modes for the shoulder, arm, calf, back, sole of the foot and joints such as the knee and elbow.
• Q: How long do the pads last?
  A: The included Long Life Pads can be used up to 150 times with proper care. Replacement Omron long life pads are available.
• Q: Is the HV-F230 the replacement for the HV-F127 and HV-F128?
  A: Yes. OMRON has introduced the HV-F230 to replace both models, adding more programs and 20 intensity levels.
• Q: Who should not use a TENS device?
  A: Do not use TENS if you have a pacemaker or other implanted electronic device, or during pregnancy, without medical advice. Check with your doctor or pharmacist if unsure.

Resources

• OMRON product page – HV-F230
• Omron Long Life TENS Pads

Always read the label and follow the directions for use. If symptoms persist, see your healthcare professional.
