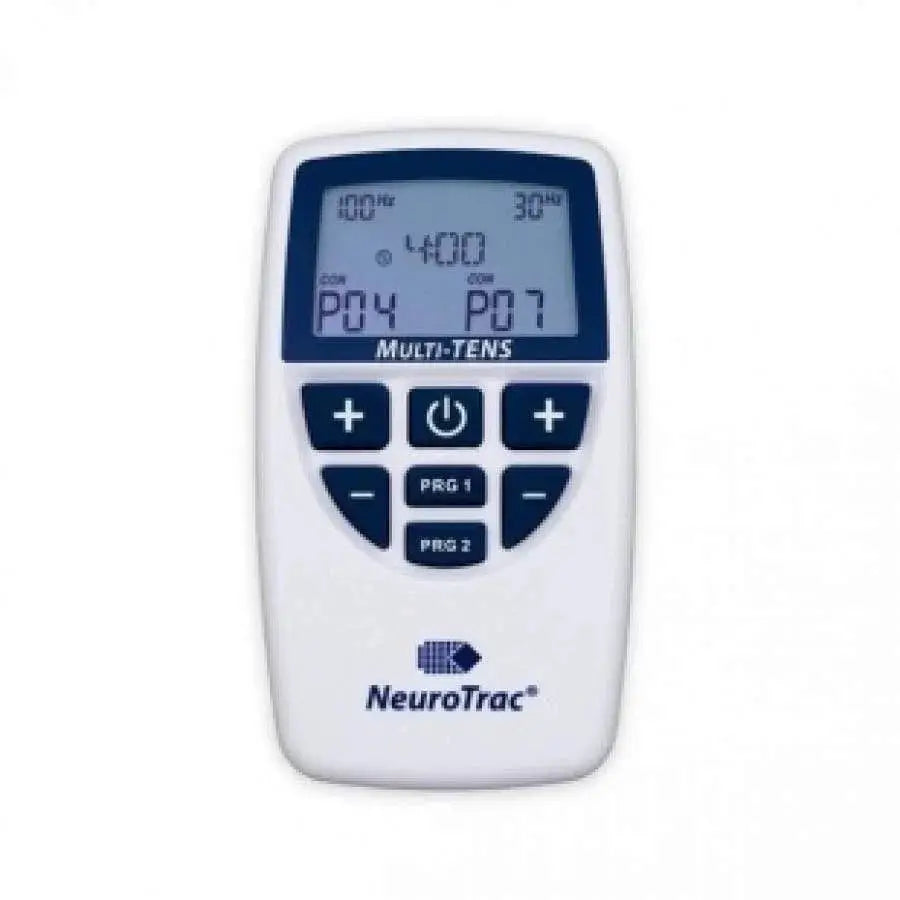

Allcare Neurotrac Obstetric Labour Pain Relief TENS Unit

Allcare Neurotrac Obstetric Labour Pain Relief TENS Unit offers targeted, non‑drug pain relief during labour. This digital dual‑channel obstetric TENS device includes a dedicated labour pain programme, a remote boost switch, and a compact, lightweight design for ease of use in birth settings.

• Dual-channel design: Independently isolated circuits for precise, customizable stimulation on each channel.
• Dedicated labour pain programme: A single, user‑friendly setting tailored for labour pain management.
• Remote Boost switch: Quick access to additional stimulation during moments of intense pain.
• Four long skin electrodes with lead wires: Positioned near the spine for effective coverage and reliable connectivity.
• Technical specifications: Dual‑channel, constant‑current stimulation; amplitude 0–80 mA into 500 Ω (actual current limited by electrode impedance); pulse width 220 μs; pulse rate 90 Hz; waveform asymmetrical bi‑phasic with zero DC; maximum output voltage 180 V; modes include continuous (Boost) and burst (9 pulses at 150 Hz) with ramp‑up time of 0.8 s.
• Compact, lightweight, and durable: Designed for easy handling during labour with a user‑friendly handheld control and a reliable build.

The Obstetric TENS Stimulator uses four long skin electrodes placed near the spine and connected to the device via lead wires. Users adjust stimulation intensity until a mild tingling sensation is felt. A hand‑held control switches between low‑frequency rest during contractions and high‑frequency stimulation when contractions peak, reverting to the lower setting after the contractions subside. Clinical guidance suggests using the unit from the onset of labour pain and continuing for two to three hours after birth. Across available evidence, obstetric TENS can provide pain relief in many births with no side effects.

Designed for obstetrics and labour pain relief, this digital dual‑channel device supports non‑pharmacological pain management and can be used in conjunction with other analgesia if recommended by your care team. Its compact form, intuitive controls, and remote boost capability help you adapt to changing pain levels during labour while maintaining safety and comfort.

Frequently asked questions

• What is this device used for? It is a digital dual‑channel obstetric TENS unit designed to support non‑drug relief during labour for mothers and care teams.
• How do I use it? Attach four long electrodes near the spine, connect the lead wires, power on, and use the handheld control to switch between rest and contraction modes. Use the Remote Boost switch for additional stimulation during peak pain, and adjust the intensity to a comfortable tingling sensation. Follow clinician guidance on duration and timing of use.
• Is it safe for mother and baby? Obstetric TENS is associated with no known side effects for mother or baby when used as directed. If you have a pacemaker or implanted device, consult your clinician before use. Stop if skin irritation occurs or if you experience any discomfort.
• How effective is obstetric TENS? Clinical evidence indicates that obstetric TENS can provide pain relief in a majority of births, with no adverse effects reported in typical use. For some individuals, relief may be enhanced when used alongside other analgesia as advised by a healthcare professional.
• What should I know about the battery and setup? Ensure proper electrode placement and clean skin before application. The device delivers stimulation through lead wires and four electrodes; verify impedance is acceptable and adjust amplitude gradually to a comfortable level.

Consider adding this obstetric TENS unit to your labour care kit to support non‑drug pain management during birth. Discuss its use with your healthcare team to determine how it fits your birth plan and any applicable guidelines.
